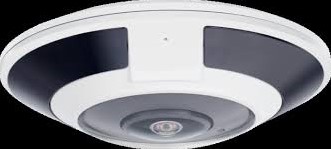

EAGLE EYE DF03 FISHEYE CAMERA 12 MPIX

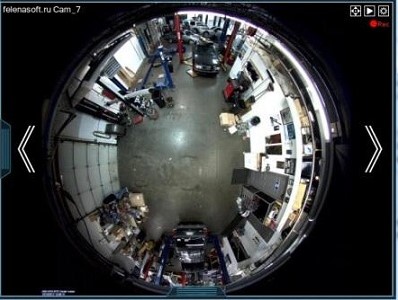

The Eagle Eye Camera DF03 delivers 12MP high
resolutions images with a 360 degree view. This
indoor/outdoor 12MP fisheye with integrated microphone
and IR provides clear 360 degree view day and night. The
camera works in concert with Eagle Eye Cloud VMS
dewarping to produce panoramic, split panoramic, ePTZ,
and 2+1 ePTZ images. Dewarping can also be configured
on the camera.
> 12 Mega Pixel
> 360 Degree View
> Integrated Microphone
> Indoor/Outdoor Rated
> Fixed Aspherical lens with Distortion Correction
> Digital Wide Dynamic Range
> Night Vision Smart IR, 15m range
Pixels 12 Mega Pixel
Resolutions 4000×3000 @20fps, 2560x2560/1800x1800/
1440x1440/960x960 @25/30fps
Lens 1.83mm
Night Vision IR LEDs up to 15m
Field of View 180°x180°
Dynamic Range DWDR
Digital Noise Reduction 2D/3D DNR with defog
Digital Image Stabilization Automatic
Applications Best for medium size open areas, hallway
intersections, lobbies, and retail.
Image Sensor 1/1.7" progressive scan CMOS
Iris Fixed F2.4
Shutter Speed 1/5s to 1/20000s
Setup
Eagle Eye Cloud VMS Preconfigured with secure password, plug and play
Camera Settings Fully Integrated with Eagle Eye Cloud VMS
Cyber Secure Eagle Eye Verified
Interface
Ethernet Waterproof RJ-45 Female 10/100 Base-T
Audio 1Ch audio in, 1Ch audio out or built in Microphone
Alarm 1Ch Output, 1Ch Input
Storage Micro SD/SDHC/SDXC slot, Max 128GB
Physical/Power
Power DC12V/Power Over Ethernet (IEEE 802.3af)
Power Consumption 5W IR Off, 9W IR On
Operating Temperature -40? to +60? (working temperature)
Operating Humidity 0% - 90% RH
Waterproof IP66
Approvals CE/FCC
Dimensions F 130 x 38.3mm
Weight 500 grams
Housing Aluminum
