Artikelomschrijving

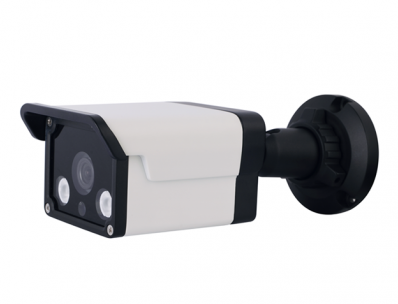

Outdoor 4MPix Mini-Bullet IP Camera, 2.8mm-8mm Moto Lens, POE, IR
The Eagle Eye Camera DB09 is a cost optimized high
performance 4 Mega Pixel outdoor motorized camera that
incorporates all the features necessary to get clarity under
both day and night conditions. The camera comes preconfigured to securely operate with the Eagle Eye Cloud
Security VMS. No configuration is needed. Just connect and
start recording video. Best for small outdoor areas.
> 4 Mega Pixel
> Outdoor, Waterproof, Mini-Bullet
> Durable All Aluminum Housing
> Motorized 2.8mm-8mm Lens
> Wide Dynamic Range
> Night Vision Smart IR, 2 IR LED's, 30m range
> Triple RTSP Streams
Pixels 4 Mega Pixel
Resolutions 2592*1520/2560*1440/20fps,2304*1296/30fps,
1920x1080/30fps
Lens 2.8mm – 8mm Moto lens
Night Vision 2 IR LED with 30m range
Field of View 90 deg ~45 deg
Dynamic Range Wide Dynamic Range & Highlight Compensation
Digital Noise Reduction Yes with Defog capability
Digital Image Stabilization Automatic
Applications
Best for modest outdoor areas or large indoor
areas: Small Parking lots, fields, parking garages,
work yards, back yards, outdoor entrances,
warehouses
Image Sensor 1/3" progressive scan CMOS
Iris Fixed
Shutter Speed 1/5s to 1/20000s
Min Illumination Color 0.01Lux; IR ON 0 Lux
Digital Capabilities
Video Compression H.264/265 high/main/baseline. MJPEG
Audio Compression G.711, RAW_PCM
Image Settings Rotation, Saturation, Brightness, Contrast,
Sharpness
Corridor mode Yes
Setup
Eagle Eye Cloud VMS Preconfigured with secure password, plug and
play
Camera Settings Fully Integrated with Eagle Eye Cloud VMS
Cyber Secure Eagle Eye Verified
Interface
Ethernet Waterproof RJ-45 Female 10/100 Base-T
Dimension Drawing Physical/Power
Power DC12V/Power Over Ethernet
Power Consumption 2.5W IR Off, 5W IR On
Operating Temperature -30? to +60?
Operating Humidity 0% - 90% RH
Waterproof IP66
Approvals CE/FCC
Dimensions 169mm x 70mm x 60mm
Weight 631 grams
Housing All Aluminum with Locking Ball Aimable Mount
